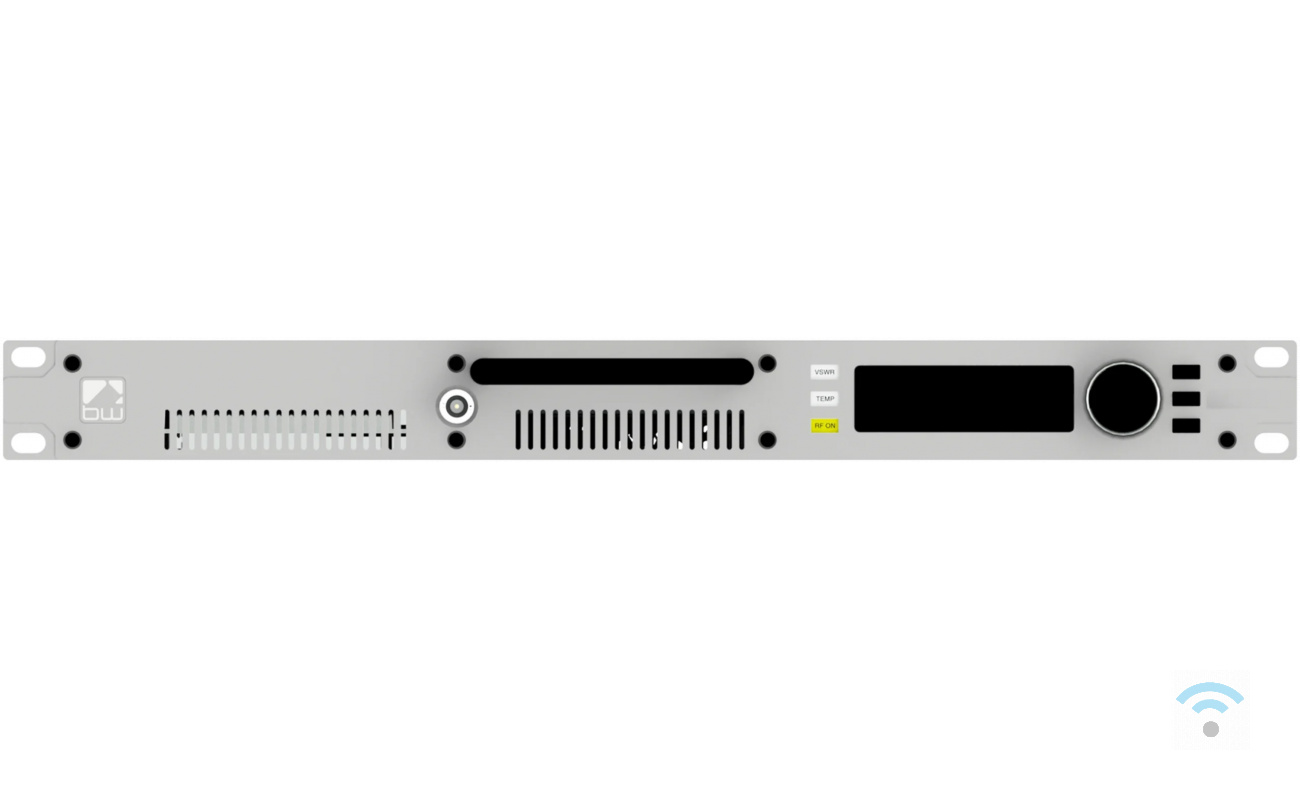

BW Broadcast TX30 V3 FM Transmitter

The BW Broadcast TX 30 V3 is an advanced 30W FM transmitter ideal for LPFM stations, community radio, emergency broadcasts, military applications or as a reliable backup transmitter for national broadcasters. This transmitter offers excellent sound quality thanks to its integrated multi-band DSPX audio processor, eliminating the need for a separate processor and making your station sound great right out of the box. Features and Functionalities With a DDS exciter and ultra-low distortion modulator, the TX 30 V3 takes the legendary reliability and purity of earlier models to the next level. The built-in Web-based control platform provides easy access to settings and monitoring, including e-mail alerts, SNMP monitoring, silence detection and advanced alarms. These features provide peace of mind and save time by quickly identifying and resolving problems. The TX 30 V3 features a standard, configurable parallel GPI/O interface for integration with your station control equipment. This allows backup audio or backup transmitters to be turned on automatically in case of problems. Product specifications RF Harmonics: better than -75 dBc Spurious: <-90 dBc Frequency range: 87.5 – 108 MHz Frequency steps: 10KHz to 100KHz selectable Frequency selection: user interface or web remote control Frequency control: Direct to channel DDS Frequency stability: < /- 100 Hz Modulation Type: DDS Synchronous AM Noise: >60dB% min (at normal deviation) Asynchronous AM Noise: >70dB RF Connector: N-type 50 Ohm Audio & MPX I/O MPX input/output connector: 2 X BNC IN / 2 X BNC OUT MPX input/output impedance: 10k MPX input level: -10dB to 10dB (adjustable) MPX input/output response: /- 0.01 dB, 5 Hz to 100 kHz Audio input connectors: XLR balanced Analog input impedance: 10 kOhm AES/EBU sampling rates: 32KHz-192KHz (MPX OVER AES READY) Stereo Subcarrier generation: DSP Pilot: 19 kHz /- 1 Hz (adjustable) Pilot generation: 0dBu – 12dBu adjustable Output level: 80dB at 19kHz (DSP based) Overshoot filter clipping: DSP based Spurious: >-60dBr / >-80dBr Stereo separation: >50dB (20Hz – 15kHz) Other Specifications RF Power: 5W – 30W Voltage input: 100-265 VAC Average power consumption: 65W at 30W RF Hallmarks: UL / TUV / CE Dimensions: 485mm x 380mm x 50mm Weight: 3.7 kg User Interface: 3 buttons, rotary encoder & 256×64 graphics display External control: I/O Alarms D9-type Male; RS232 D9-Type Female, Telnet and Web remote RJ45 Ethernet Additional: GPS inputs for SFN application, XLR analog & digital inputs, Dual MPX / SCA inputs and outputs, Lab-grade DSP stereo generator, RDS generator, DSPX multi-band processor inside, VSWR and temp monitoring, Events, alarms and actions, RS232, Telnet, SNMP, Mobile ready web browser control See the data sheet for more information: BW Broadcast TX30 Datasheet
