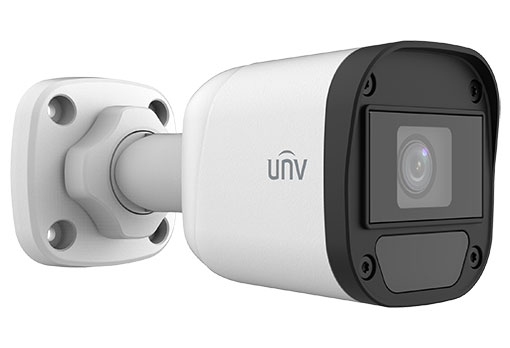

2MP Fixed IR Bullet Analog Camera

Model UAC-B112-F28 UAC-B112-F40 Sensor Pixel 2MP Size 1/3″ Minimum illumination 0.02 lux (F2.0, AGC ON) 0 lux (IR on) Lens Lens 2.8mm 4.0mm Lens mount M12 Angle of view H: 90.5°  V: 49.6°  D: 109.5° H: 80.2°  V: 40.7°  D: 90.5° Illuminator Illuminator One IR illuminator Illumination distance 20m Lifetime ≥60,000 hours Video Resolution 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) Frame rate TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC Shutter time PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s Image Exposure mode 4 modes: Global (default), BLC, HLC, DWDR Day/Night 3 modes: Auto (default), Day, Night Digital noise reduction 2D White balance Two modes: Auto (default), Manual WDR DWDR Smart IR Support Flip Supports 180° horizontal flip, 180° vertical flip. Interface Power 5.5mm power interface Video output BNC, supports TVI/AHD/CVI/CVBS Operating environment Temperature -30℃ to 60℃(-22℉ to 140℉) Humidity ≤95% (RH, non-condensing) Surge protection 4KV General Power DC 12V(±25%), with reverse polarity protection, Max 2.88W Mount 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket Dimensions 142mm*63mm*65mm (L*W*H) Material Plastic Weight 135g(0.30lb) OSD menu language 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish Certification EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) Safety CE-LVD (EN 62368-1) Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) Protection IP67 (IEC 60529)
