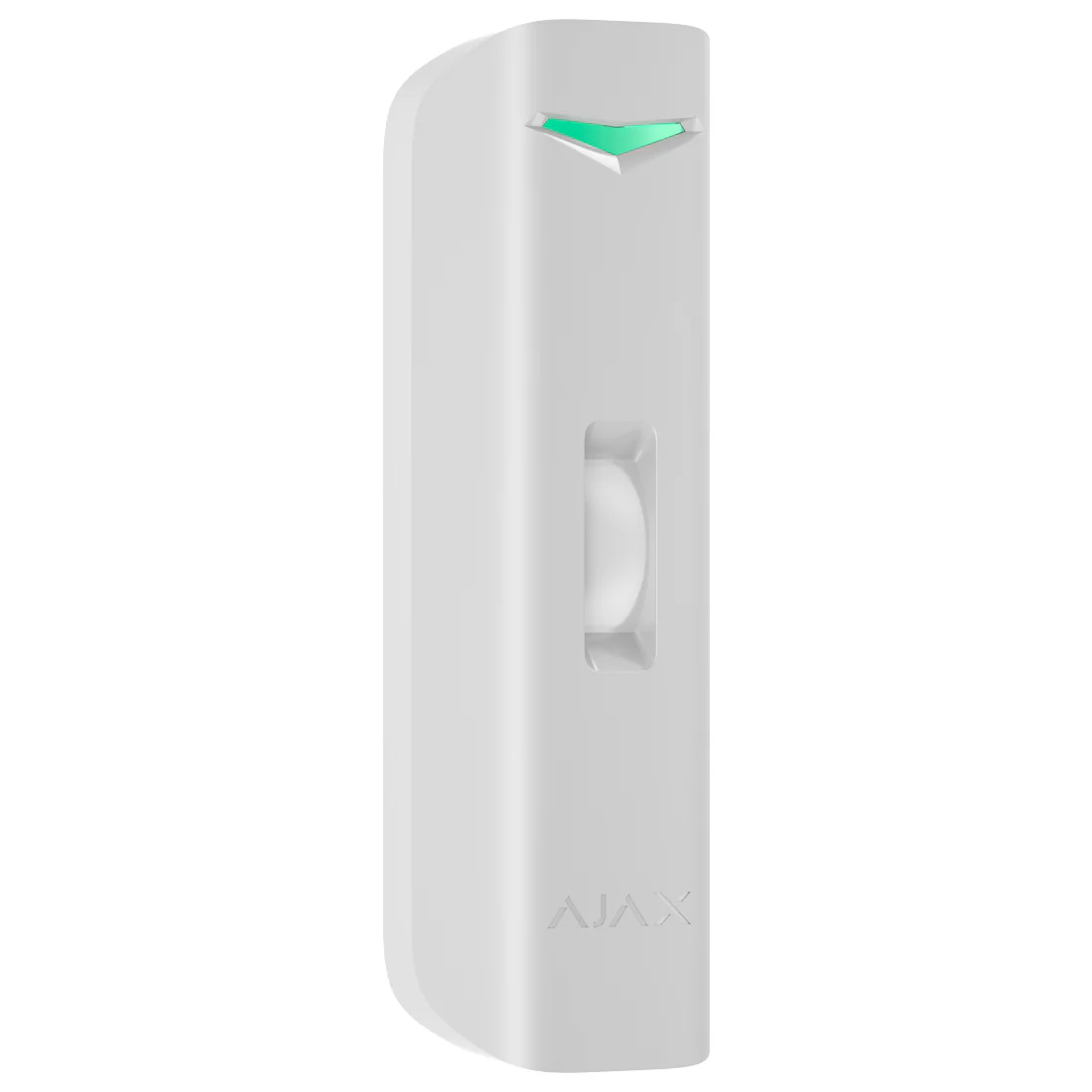

Ajax Curtain Outdoor Mini Jeweller

DescriptionAjax Curtain Outdoor Mini Jeweller Reliable first-line perimeter detectionThe Ajax Curtain Outdoor Mini Jeweller is designed to detect intrusion before an intruder reaches a window, doorway or narrow access point. Its curtain-style detection pattern creates a focused digital barrier, making it well suited to perimeter protection where broad-area outdoor detectors may be less practical. It can be used outdoors or indoors depending on the application.Dual-technology detection with fewer false alarmsThis detector combines PIR motion sensing with a built-in K-band microwave sensor. After the PIR sensor detects movement, the device performs an additional RF scan to help filter out false alarms caused by air movement, fans, air conditioners and other thermal disturbances. Ajax also uses its SmartDetect algorithm to further improve reliability in real-world environments.Focused protection for narrow spacesWith a narrow 15° horizontal detection angle and a wide 100° vertical field of view, Curtain Outdoor Mini Jeweller is made for protecting windows, doors, gates, passages and other narrow perimeter zones. The maximum motion detection distance is 5 m, giving you precise coverage without unnecessarily exposing wider surrounding areas.Pet immunity and flexible installationThe detector offers Main and Pet modes via a slider on the enclosure. When properly installed and configured in Pet mode, it can ignore pets up to around 70 cm high. Ajax recommends installing it at about 1 m height on a side surface for proper pet immunity. It can also be installed on a ceiling at up to 5 m, depending on the required coverage area.Built for dependable Ajax system integrationCurtain Outdoor Mini Jeweller uses Jeweller to transmit alarms and events and Wings for firmware updates. Wireless communication range can reach up to 1,700 m in open space, and the detector supports anti-masking, tamper protection and monitoring station event transmission through the Ajax ecosystem. It requires a compatible Ajax hub with OS Malevich 2.34 or later.Key FeaturesDual-technology motion detectionPIR sensing is backed by K-band microwave verification for improved stability in outdoor environments.Narrow curtain detection patternDesigned for windows, doorways, fence lines, passages and other focused perimeter zones.Anti-masking protectionDetects attempts to block the lens and can report masking events to users and the monitoring station.Pet modeCan ignore pets up to approximately 70 cm when installed correctly in Pet mode.Long battery lifeSupplied by 2 × CR123A batteries for up to 3 years of autonomous operation.Technical SpecificationsDevice type: Wireless curtain-type motion detector for outdoor and indoor use.Detection technology: PIR sensor with built-in K-band microwave verification.Motion detection distance: Up to 5 m.Detection angles: 15° horizontal / 100° vertical.Pet immunity: Up to 70 cm when correctly installed and set to Pet mode.Anti-masking: Yes, with obstacle detection in front of the lens at up to about 5 cm depending on material, with a maximum masking detection time of 180 s.Wireless protocols: Jeweller and Wings.Radio communication range: Up to 1,700 m in open space.Radio frequency band: 868.0–868.6 MHz.RF output power: Up to 20 mW.Battery: 2 × CR123A, 3 V.Battery life: Up to 3 years.Operating temperature: -25 °C to 60 °C.Permissible humidity: Up to 95%.Protection rating: IP55.Dimensions (detector): 145 × 32 × 43 mm.Dimensions with mounting bracket: 145 × 44 × 54 mm.Weight (detector): 130 g.Weight (mounting bracket): 20 g.Compatibility: Requires a compatible Ajax hub with OS Malevich 2.34 or later.ApplicationsProtecting windows and sliding doorsCovering narrow passages and side walkwaysSecuring gates and access pointsCreating a focused perimeter detection line along walls or boundariesIndoor or outdoor perimeter protection where a compact curtain detector is preferredWhat’s in the BoxCurtain Outdoor Mini JewellerSmartBracket mounting panel2 × CR123A battery (pre-installed)Angle mountInstallation kitQuick start guide
