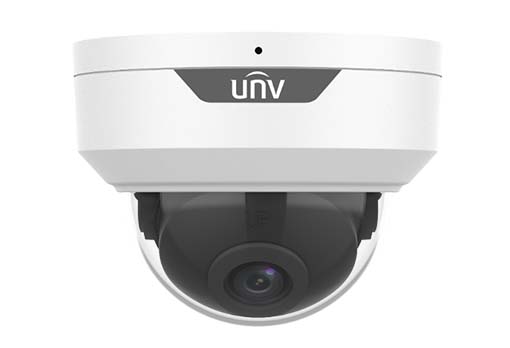

2MP LightHunter HD IR Fixed Dome Analog Camera

Model UAC-D122-AF28M UAC-D122-AF40M Sensor Pixel 2MP Size 1/2.9″ Minimum illumination 0.005 lux (F1.6, AGC ON) 0 lux (IR on) Lens Lens 2.8mm 4.0mm Lens mount M12 Angle of view H: 101.5°  V: 56.9°  D: 117.4° H: 83.8°  V: 42.7°  D: 100.1° Illuminator Illuminator One IR illuminator Illumination distance 30m Lifetime ≥60,000 hours Video Resolution 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) Frame rate TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC Shutter time PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s Image Exposure mode Four modes: Global (default), BLC, HLC, DWDR Day/Night Three modes: Auto (default), Day, Night Noise reduction 2D/3D White balance Two modes: Auto (default), Manual WDR DWDR Smart IR Support Flip Supports 180° horizontal flip, 180° vertical flip Defog Digital Defog Audio Microphone Built-in Mic Camera audio TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps Interface Power 5.5mm power interface Video output BNC, supports TVI/AHD/CVI/CVBS Operating environment Temperature -30°C to 60°C (-22°F to 140°F) Humidity ≤95% (RH, non-condensing) Surge protection 4kV for power and video output interfaces Ingress protection IP67 IK rating IK10 General Power DC 12V(±25%), with reverse polarity protection, Max 3.3W Mount Surface mount (default), optional tilted mounting bracket Dimensions Φ109mm*83mm (diameter*height) Material Metal Weight 372g (0.82lb) Certification CB, CE, FCC, UL
